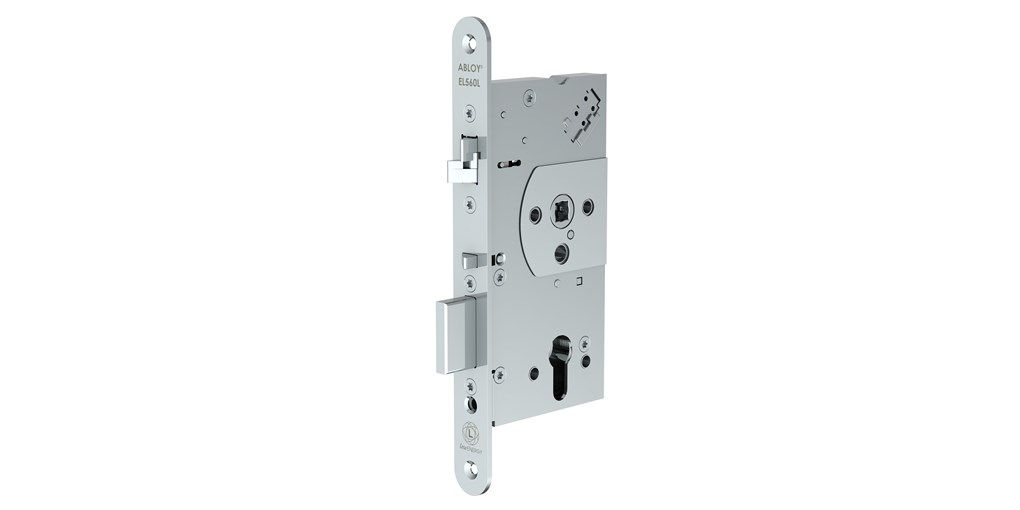

EL560-65MM Abloy Electric high security lock with deadbolt and anti friction

Abloy EL560 Electric Lock high security lock with deadbolt and anti-friction bolt
Product code: L23572/EL560
The Abloy EL560 Electric Lock is a high-security lock with a deadbolt and anti-friction bolt which deadlocks when the door closes.
Its trigger bolt is easily reversible and suitable for all hands of a door, hung on left or right.
This lock is tested to mechanical resistance EN12209 and meets EN179 for emergency exit
Quick change fail locked to fail unlocked.
Easily reversible trigger bolt, suitable for all hands of the door.
Deadbolt and anti-friction bolt deadlock when the door closes.
Meets EN179 for emergency exit doors and EN1634-1 for fire resistance when used with correct exit hardware.
Tested to mechanical resistance EN12209.
Key override at all times.
Application Metal & Timber Doors.
Current Consumption 0.55A @ 12V DC / 0.27A @ 24V DC.
Faceplate Width 24mm.
Finish Satin Stainless Steel.
Faceplate Height 235mm.
Weight 1.35Kg.
Brand Abloy Security.
Body Height 168.5mm.
Body Width 16.5mm.
Backset 65mm.
Body Depth 98mm.
Manufacturer Reference EL560.
Input Voltage 12/24V DC.
Guarantee 2 Year.
Key Override Yes (Cylinder Purchased Separately).
